Brilliantly Conceived & Beautifully Crafted

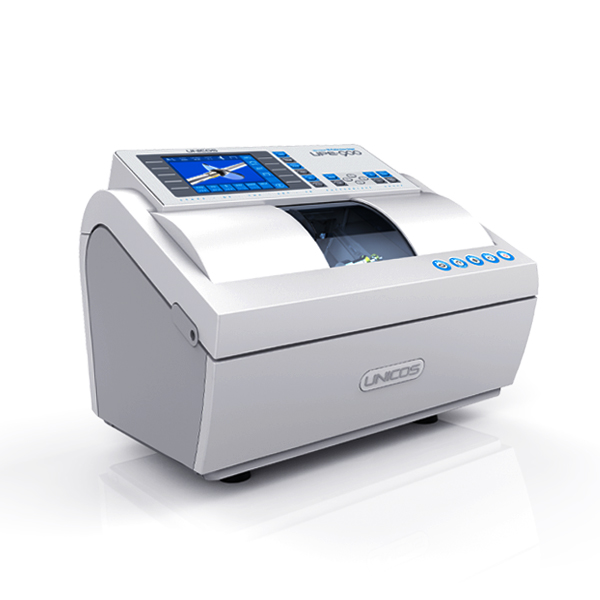

UPE-900 Patternless Edger
State-of-the-art 3D Patternless Edger that delivers the best results with precise, fast, and easy

UPE-900 supports all types of lenses and frames. When designing the left and right focus, each position can be precisely controlled in 0.1 increments, and when specifying the design height, the height can be specified from the center or bottom of the border. Easy data transmission is possible using barcodes.

Specification

Specification - R/K mode, Ref mode, Ker mode, CLBC mode

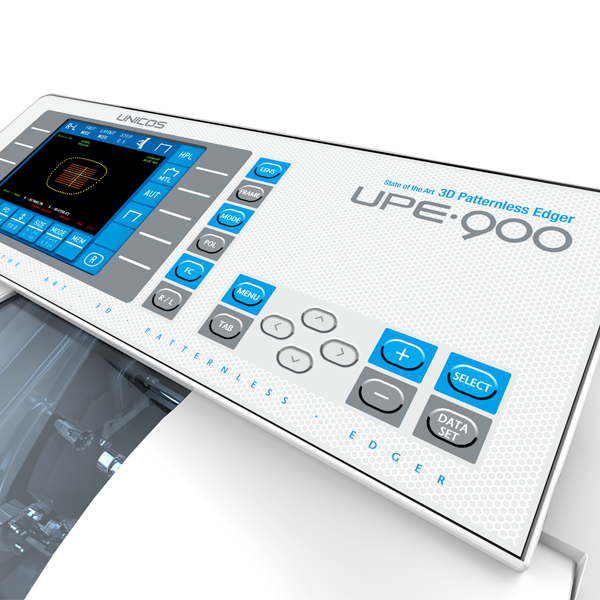

Display 8” TFT LCD with Touch Screen
Lens Material Hi-Index, Plastic, Polycarbonate, Trivex, Glass, Acrilic
Lens Size Min : 17mm
Max : 80mm
Mode Beveling
- Automatic
- 5:5, 4:6, 3:7
- Control
- Mini(0.6mm)
Grooving
- Automatic
- 5:5, 4:6, 3:7
- Control mode
Flat
Safety Beveling(Front & Rear)
Polishing(Beveling & Flat)
Functions Shape modification
Retouch
Bevel/Groove Control
R/L Inverting
Shape Memory(Max. 120
Interface Port 1(Selectable)
- RS-232 : PC, Tracer
- TCP/IP : Server
Port 2(Optional)
- RS-232 : Barcode Reader
Dimension / Weight 580(W) x 400(H) x 440(D) mm, 36kg
Power supply Input : 200~240VAC, 50/60Hz
Output : 200~240VAC, Max 120W
Standard Accessories
Suction Cups, Power Code, Tools
