More Wide LCD & More Intuitive User Interface
The URK-800A can check how much crystalline lens are blurred by cataract and cornea in injured. At the same time, Save 2 cuts for each eye (Max.4 cuts for one patient), Furthermore may compare the captured data.
Specification
| R/K Mode | Sussessive Refractometry & Keratometry |
|---|---|
| Ref Mode | Refractometry |
| Ker More | Keratometry |
| CLBC | Contact lens baas curve measurement |
| Vertex Distance (D) | 0.0, 10.0, 12.0, 13.5, 15.0 mm |
|---|---|
| Sphere(SPH) | -25.00 ~ +22.00D (0.12D/0.25D) |
| Cylinder(CYL) | 0.00 ~ +/-10.00D |
| Axis | 1~180˚ |
| Cylinder Form | -, +, +/- |
| Pupil Distance | 10~85 mm |
| Radius of Curvature | 5.0 ~ 10.2mm |
|---|---|
| Corneal Power | 33.00 ~ 67.50D |
| Corneal Astigmatism | 0.00 ~ -15.00D |
| Axis | 1 ~ 180˚ |
| Corneal Diameter | 2.0 ~ 12.00mm |

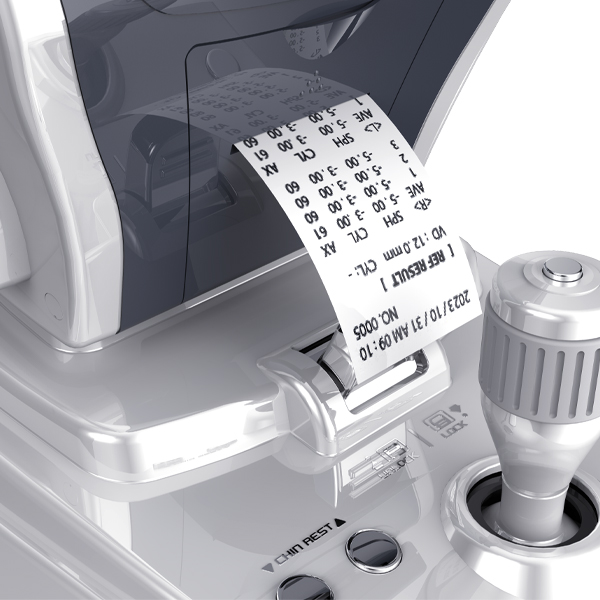

| Printer | Thermal printer |
|---|---|
| Display | 7.0 inch TFT COLOR LCD Monitor |
| Power supply | AC100 – 240v~, 50/60Hz 60 - 90VA |
| Data Output | RS-232 Interface |
| Chin rest movement | Max 65mm, electrical movement |
| Dimension/ Weight | 275mm(W) x 525mm(D) x 450mm(H) / 18kg |
