One Touch Alignment, Tracking, Focus & Capture.

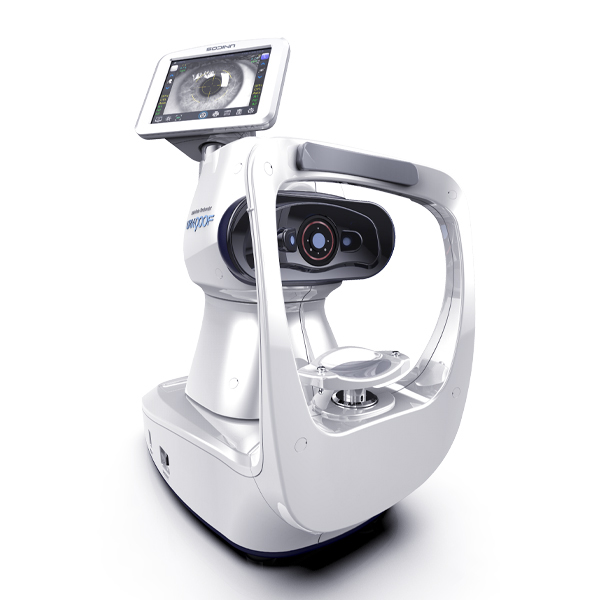

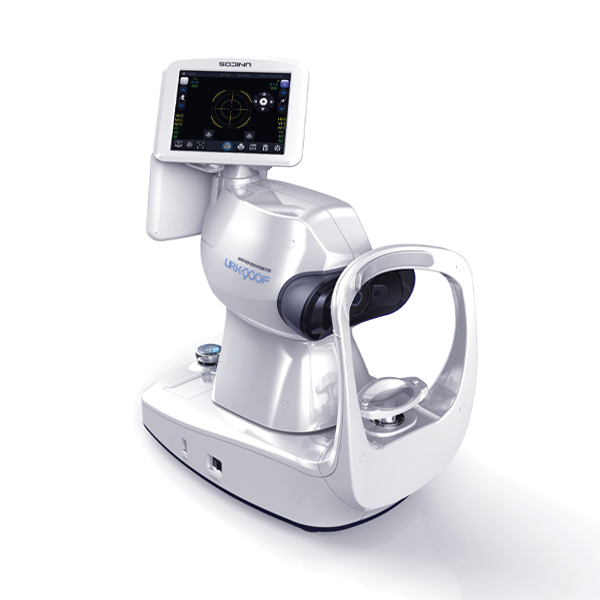

URK-900F is used to determine the initial, objective refractive values for a patient's eyes in the workflow of refraction and to determine the optical prescriptions for myopia, hyperopia and astigmatism
Specification
| R/K mode | Successive Refractometry & Keratometry |
|---|---|
| Ref mode | Refractometry |
| Ker mode | Keratometry |
| CLBC mode | Contact lens base curve measurement |
| Vertex Distance (D) | 0.0, 10.0, 12.0, 13.5, 15.0 mm |
|---|---|
| Sphere(SPH) | -25.00 ~ +22.00D (0.12D/0.25D) |
| Cylinder(CYL) | 0.00 ~ +/-10.00D |
| Axis | 1~180° |
| Cylinder Form | -, +, +/- |
| Pupil Distance | 10 ~ 85 mm |
| Radius of Curvature | 5.0~10.2mm |
|---|---|
| Corneal Power | 33~67.50D |
| Corneal Astigmatism | 0.00~-15.00D(0.12D/0.25D) |
| Axis | 1~180° |
| Corneal Diameter | 2.0~12.00mm |
| Printer | Thermal / Auto cutting |
|---|---|
| Power Saving | Nominate by 3, 5,1 0 Minutes |
| Display | 8 Inch 24 bit colored TFT LCD |
| Power Supply | 100 - 240V~, 50/60Hz, 50-70VA |
| Data Output | RS-232 Interface, USB(for service) |
| Chinrest movement | Max, 50mm, Motorized operating |
| Dimension/Weight | 282mm(W) x 522mm(D) x 438mm(H) / 19kg |
